Flexiwall benefits
Flexiwall delivers the performance of a permanent structure, without the limitations of traditional construction. Create controlled environments that adapt easily when business needs change.
Prevent contamination
Eliminate dust spread and prevent cross-contamination – stop dust, fumes, odours and tainting with Flexiwall’s 99% dust tight seal
Manage temperature
Create temperature controlled environments – enable adjacent areas to operate at and maintain different temperatures
Reduce noise
Enclose noisy process areas – reduce noise pollution created from machinery in manufacturing and warehouse environments
Achieve ISO 7 cleanroom standard
Certified ISO 7 cleanrooms – separate clean from dirty with a compliance guaranteed seal around steelwork and protrusions
Quick and clean installation
Keep operations moving – Flexiwall’s installation method creates minimal disruption so you can adapt areas quickly and safely
Walls any height and length

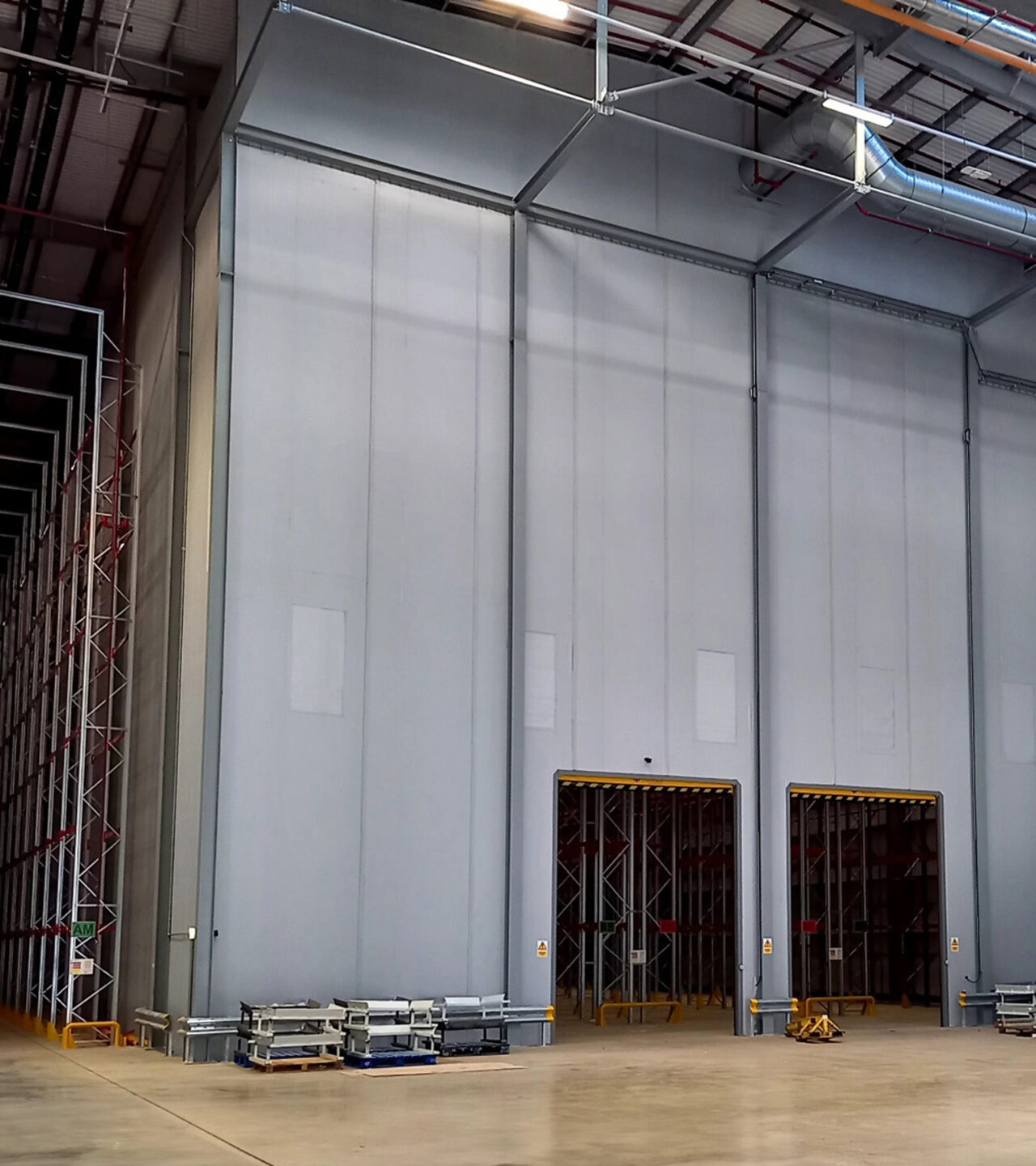

Ideal for tall industrial environments, Flexiwall can be custom-designed to any height and length – a unique alternative to restrictive, rigid, traditional walls
Engineered for industrial performance, strength and resistance.
A unique multipurpose partition wall for factories and warehouses. Customised for complex and sensitive environments, Flexiwall® adapts to your changing needs and evolving spaces.

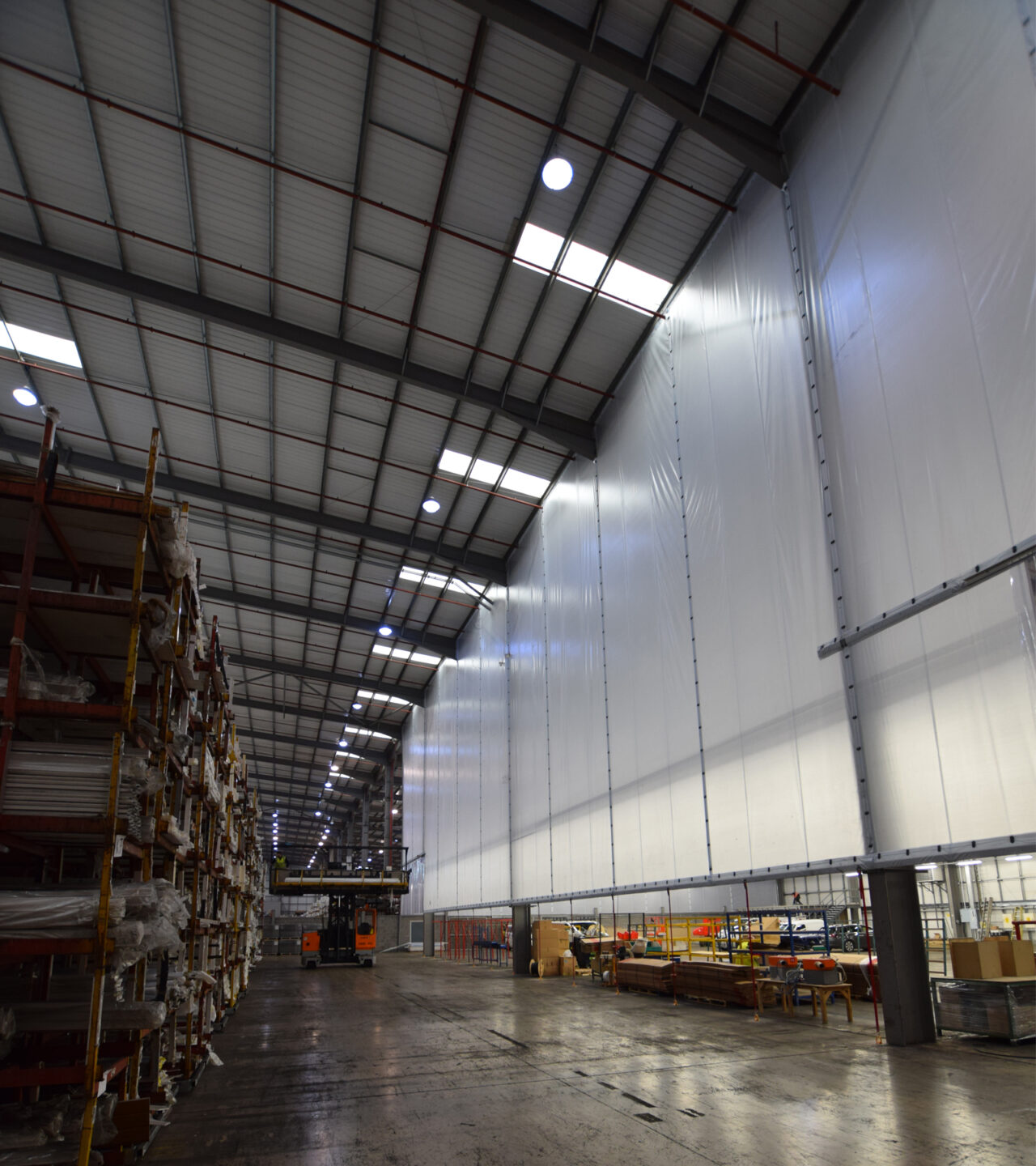

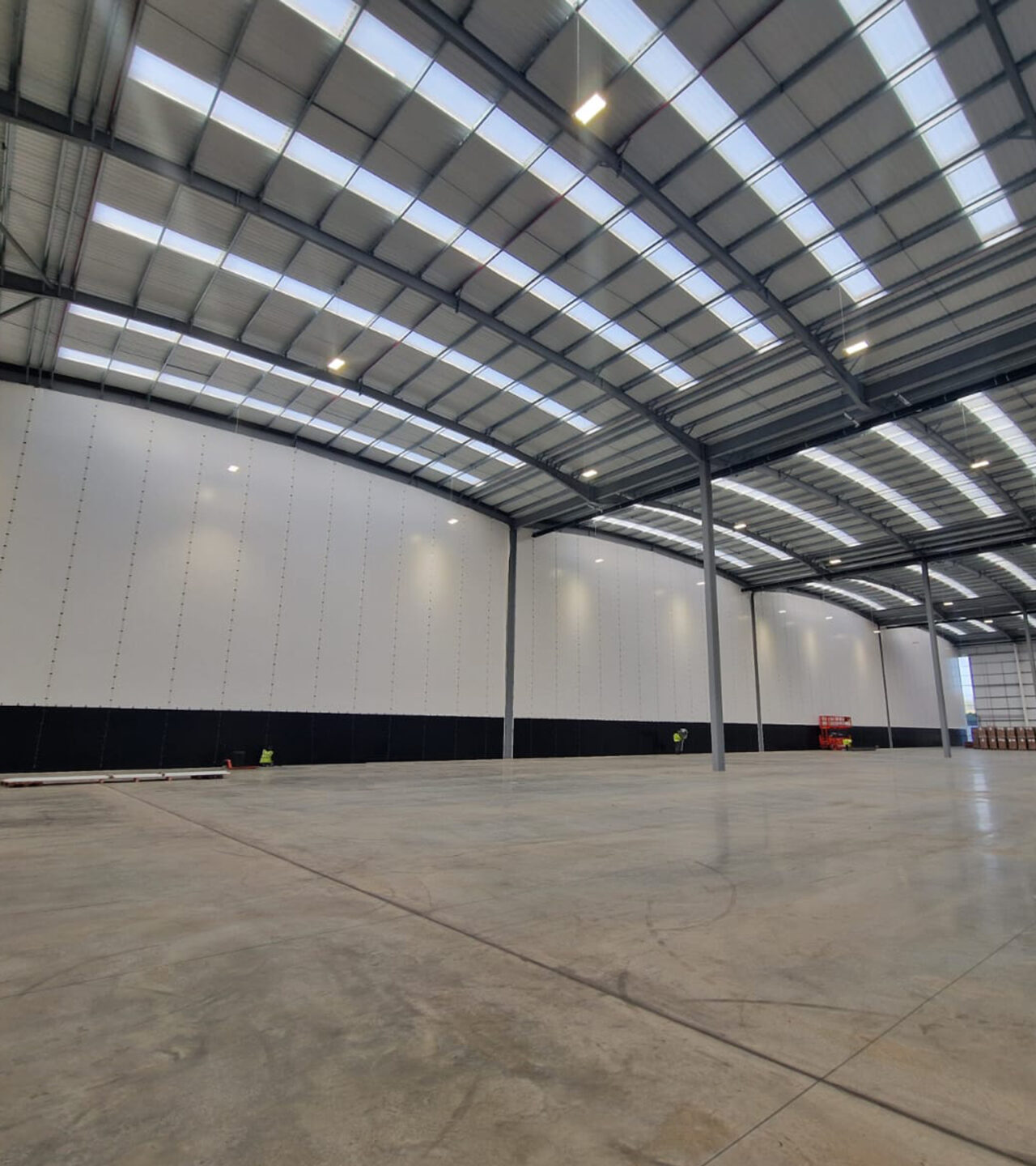

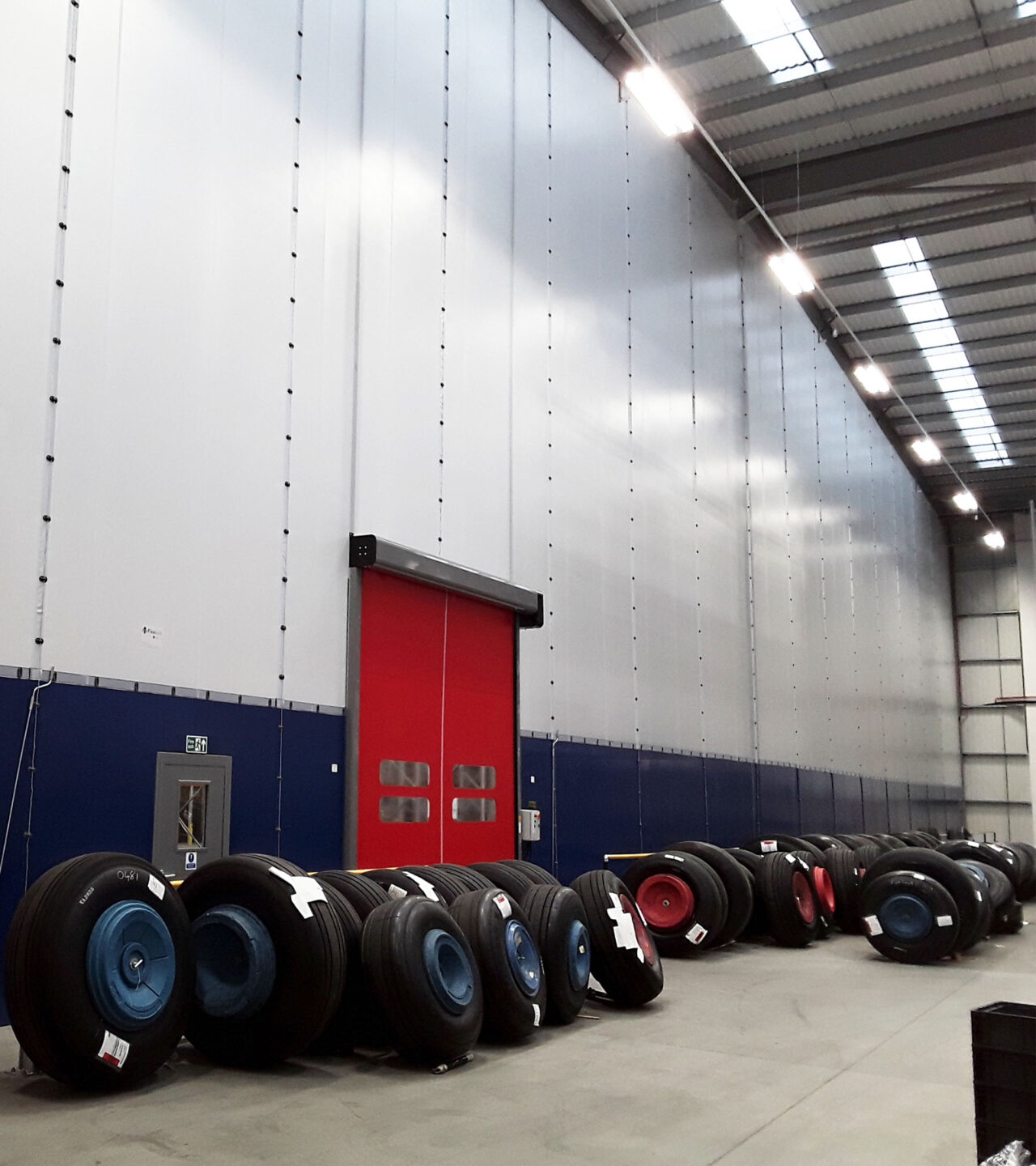

A smart alternative to traditional fixed wall systems, Flexiwall® is a tensioned fabric partition wall ideal for large buildings. Customise to create zones, prevent cross-contamination, manage temperature and reduce noise.
Flexiwall takes up minimal floor space and hangs from your building’s existing structure. Installation is quick and clean to minimise disruption, allowing spaces to be upgraded and adapted safely without shutting down operations.
Manufactured in PVC coated reinforced fire-retardant fabric, Flexiwall is available in a range of fabric types and colours. Incorporate doors, vision panels and crash barriers to complete your project.
Flexiwall can be adapted to suit various business requirements including high-level part-height suspended solutions for fume and steam control. Due to the fabric’s waterproof properties, Flexiwall can also be used for external applications when combined with wind load straps.

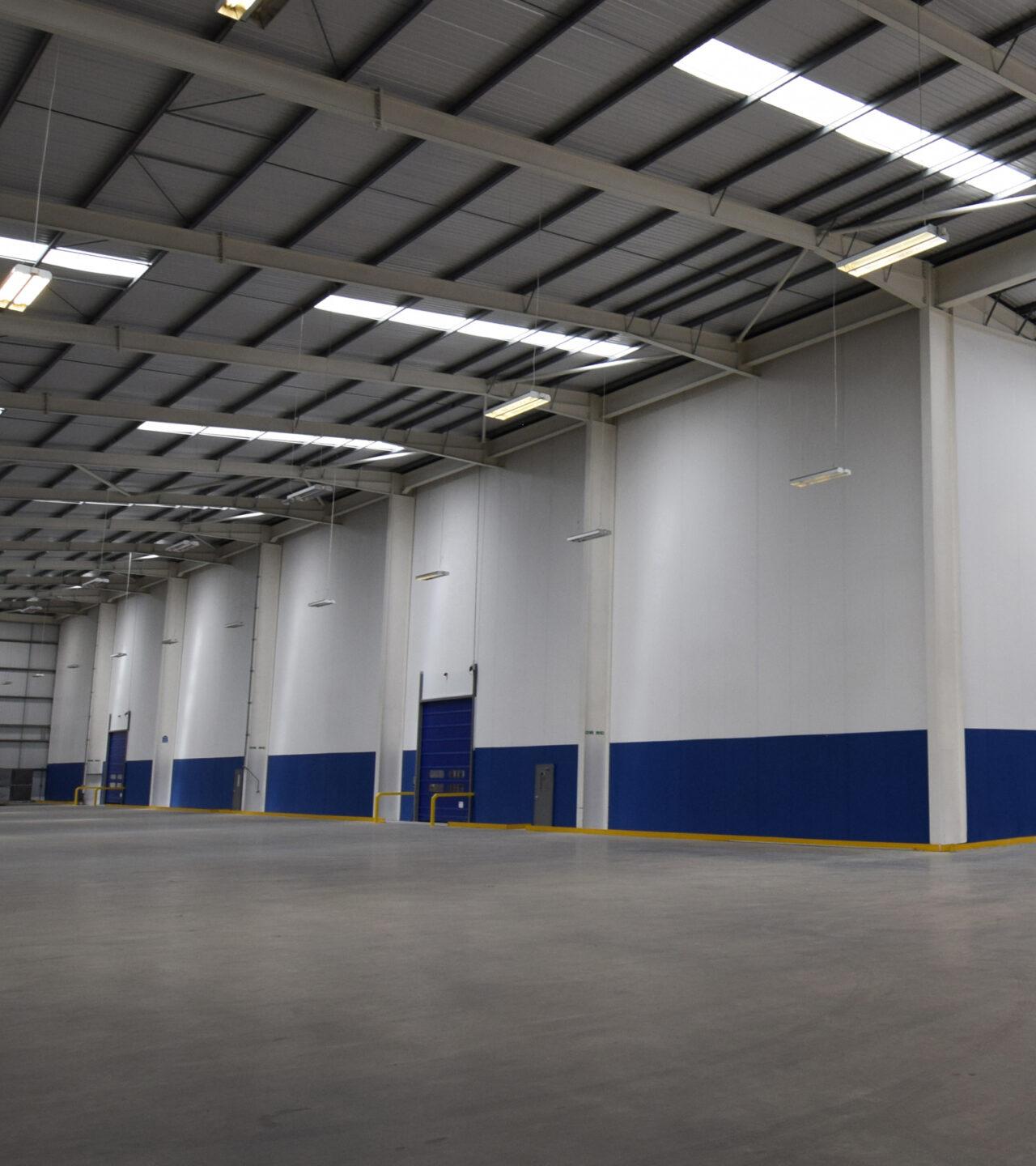

Use in conjunction with Anchorwall or Hoardfast when a solid base is required.
- Create new areas/zones in your existing facility
- Divide areas to prevent dust spread
- Segregate areas for contamination (dust/dirt/odour/tainting) control
- Create temperature controlled zones
- Create sound reducing machine enclosures – sound reduction up to 16dB
- Enclose internal mezzanines
- Enclose external canopies by adding walls
- Close off redundant areas – reduce heat loss and improve energy efficiency
- Create airlocks when combined with fast action doors
- Create part-height high-level non-obstructive suspended partitions for fume control
- Create walls from fabric with limited combustibility (Glass fabric with PU coating)
| Fabric composite | Main product is polyester reinforced fire-retardant fabric with PVC coatings. We also supply a non-combustible woven glass fabric with PU coating (*Range of base fabric and coatings depending on your requirement) |
|
|---|---|---|
| Fabric weight | Between 340 – 1300gsm |
|
| Tensile strength | Between 340 – 4000N / 50mm |
|
| Tear strength | Between 80 – 850N |
|
| Fabric fire rating examples | EN 13501-1 between A2-s1-d0 to C-s2-d0, DIN 4102:B1, BS 5867:2008 Part 2 Type A & B, Warrington Certifire TS62 and TS63 (*Fire ratings subject to chosen material specification. Fire ratings supplied at quotation stage) |
|
| Operating temperature | Between -40 / +500ºC (*Dependent on fabric type) |
|
| Sound reduction | Between 10 – 16dB |
|
| Thermal resistance | Between 4 – 5.7 W/m2K |
|
Due to the bespoke nature of our products, lead times vary. Our in-house contracts team can provide accurate lead times at the point of enquiry, ensuring timely delivery and installation of your solution.
Westgate Global provides survey and design support, including system-specific calculations, to establish whether your building structure can support the required Flexiwall partition.
All of our partitioning solutions are manufactured and quality-controlled in the UK and Europe, ensuring high standards and fast lead times.
We evaluate site-specific wind load requirements as part of the design process. Where high wind loads are a concern, additional features can be built into the design of your warehouse partition wall or external factory divider.
We offer a range of customisation options with coloured panels to match your company’s RAL code. We can also incoporate corporate logos, either printed directly onto the Flexiwall or on removable panels.
Flexiwall is engineered to meet the performance requirements of a permanent factory wall, while offering the unique advantage of being reconfigurable. It’s a dependable long-term solution for industrial environments that require durable and adaptable space division.

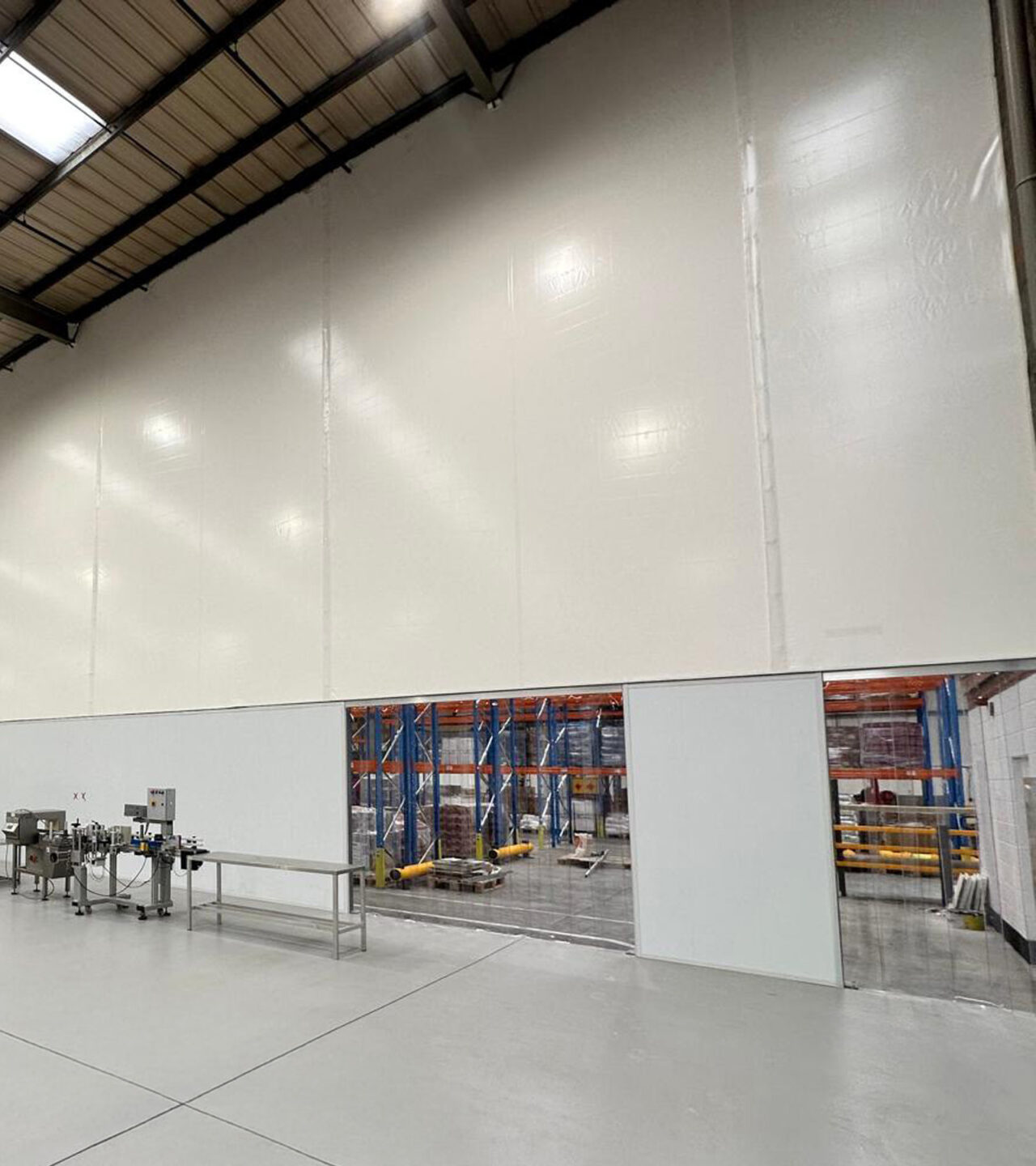

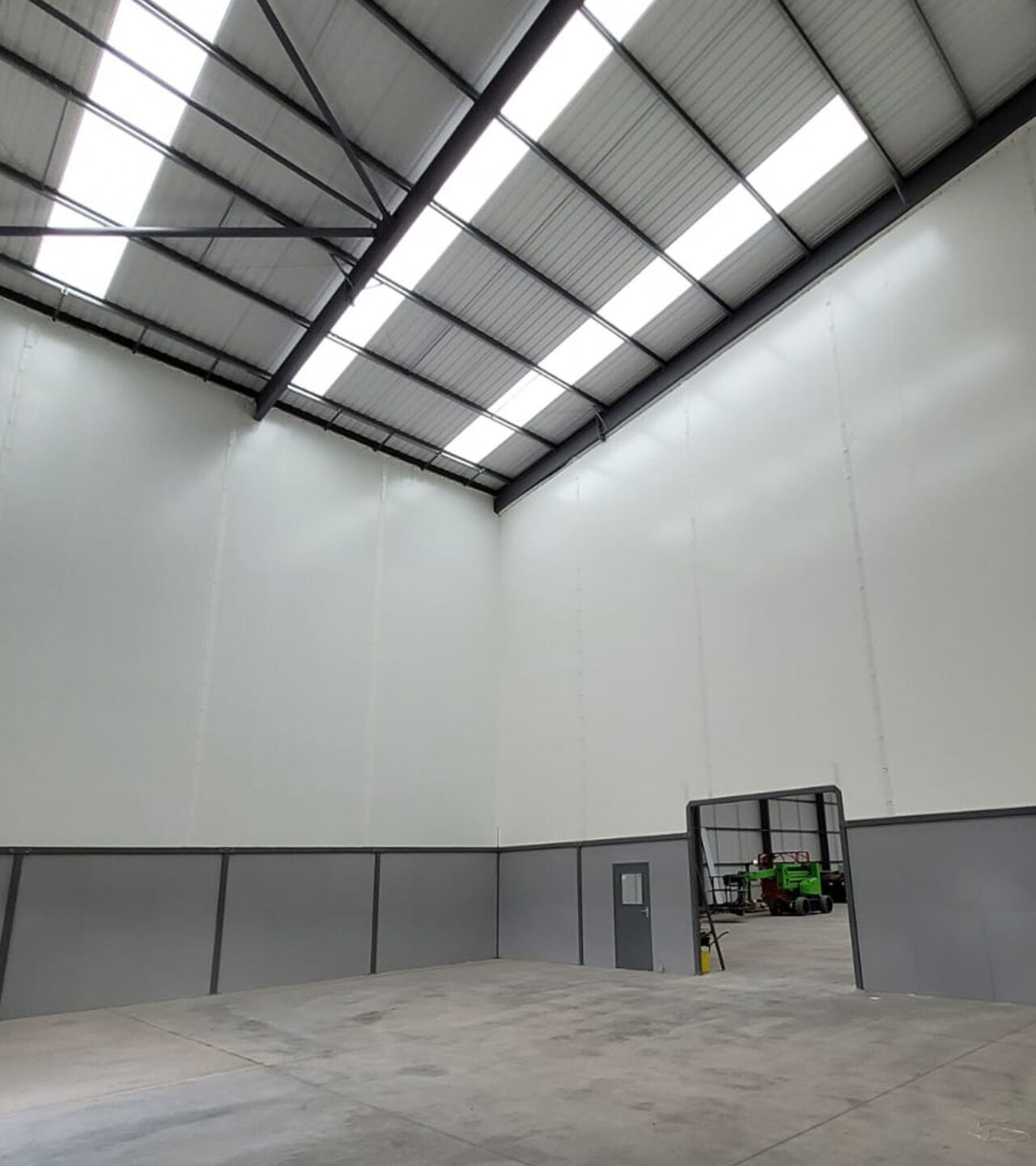

Yes. Flexiwall can be used in conjunction with our Anchorwall steel partition wall or our Hoardfast pvc or steel faced partition walls when a low level solid base is required. The Flexiwall fabric partition is fixed to the top of the solid base and tensioned. When using Hoardfast at low level, we can produce additional purpose built steelwork to support the structure. The combination of our solid base partitions and Flexiwall above provide complete floor-to-ceiling coverage.

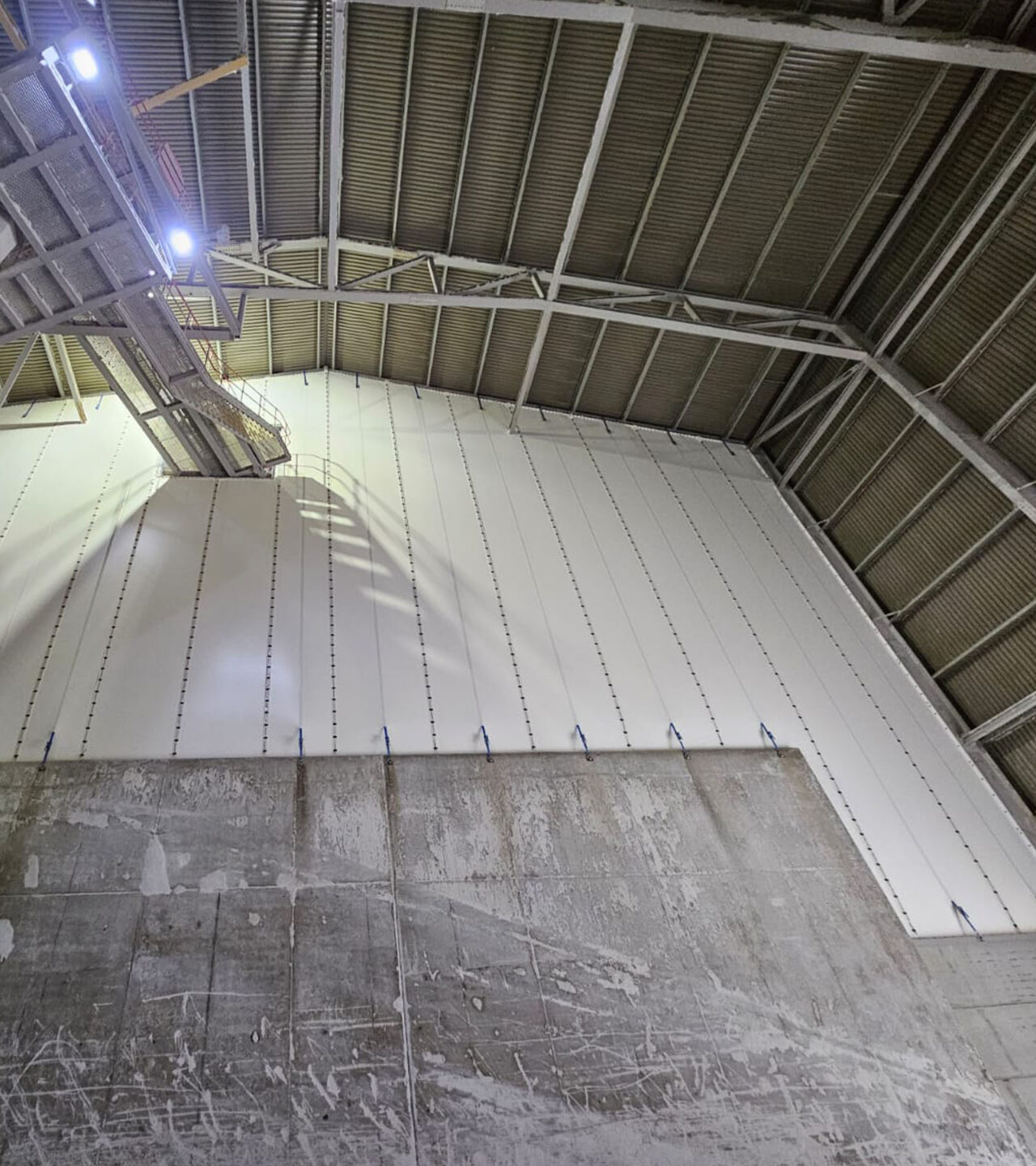

Flexiwall is designed to be versatile, so it can also be installed around or on top of an existing solid base – such as brick or precast concrete walls.
We work alongside Plus Finance, one of the UK’s leading specialists in lease finance, to provide customers with a tax efficient way of funding a Flexiwall investment. Lease rental payments are 100% allowable against taxable profit, making leasing the most tax efficient method of financing a Flexiwall for your premises. To find out, more speak to one of our Westgate Global team and we can advise on next steps.
Watch the video and learn more about Flexiwall®
Watch the video and learn more about Flexiwall®
See how Flexiwall is installed, and understand the benefits it brings to your business when creating zones, preventing cross-contamination, managing temperature and reducing noise.
Partitioning accessories
Enhance your solution to improve workplace functionality and efficiency. We deliver customised integrated solutions for your individual project – removing the need for you to connect multiple suppliers.

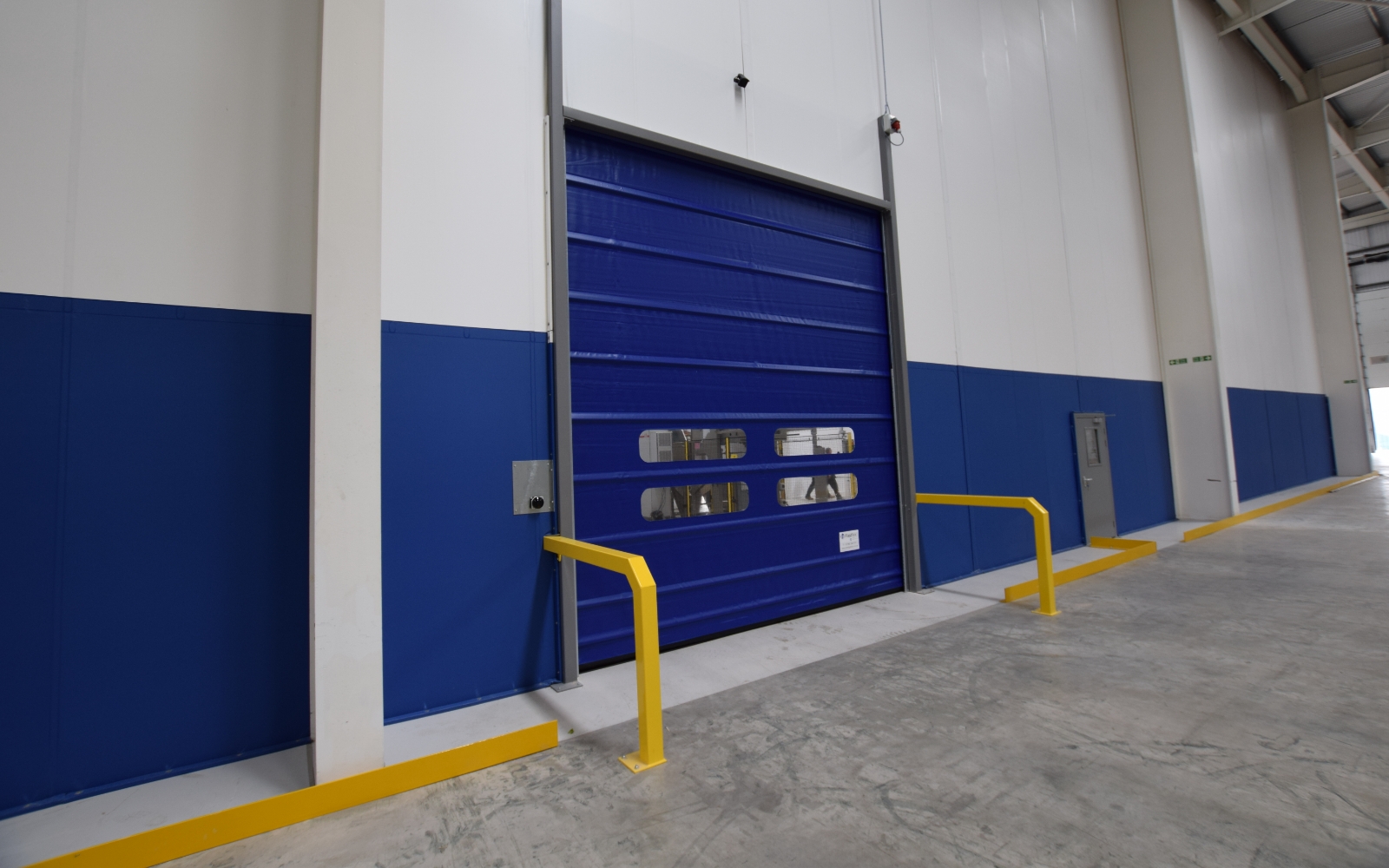

Fastflex® – fast action doors
A motorised access point solution suitable for internal and external use.

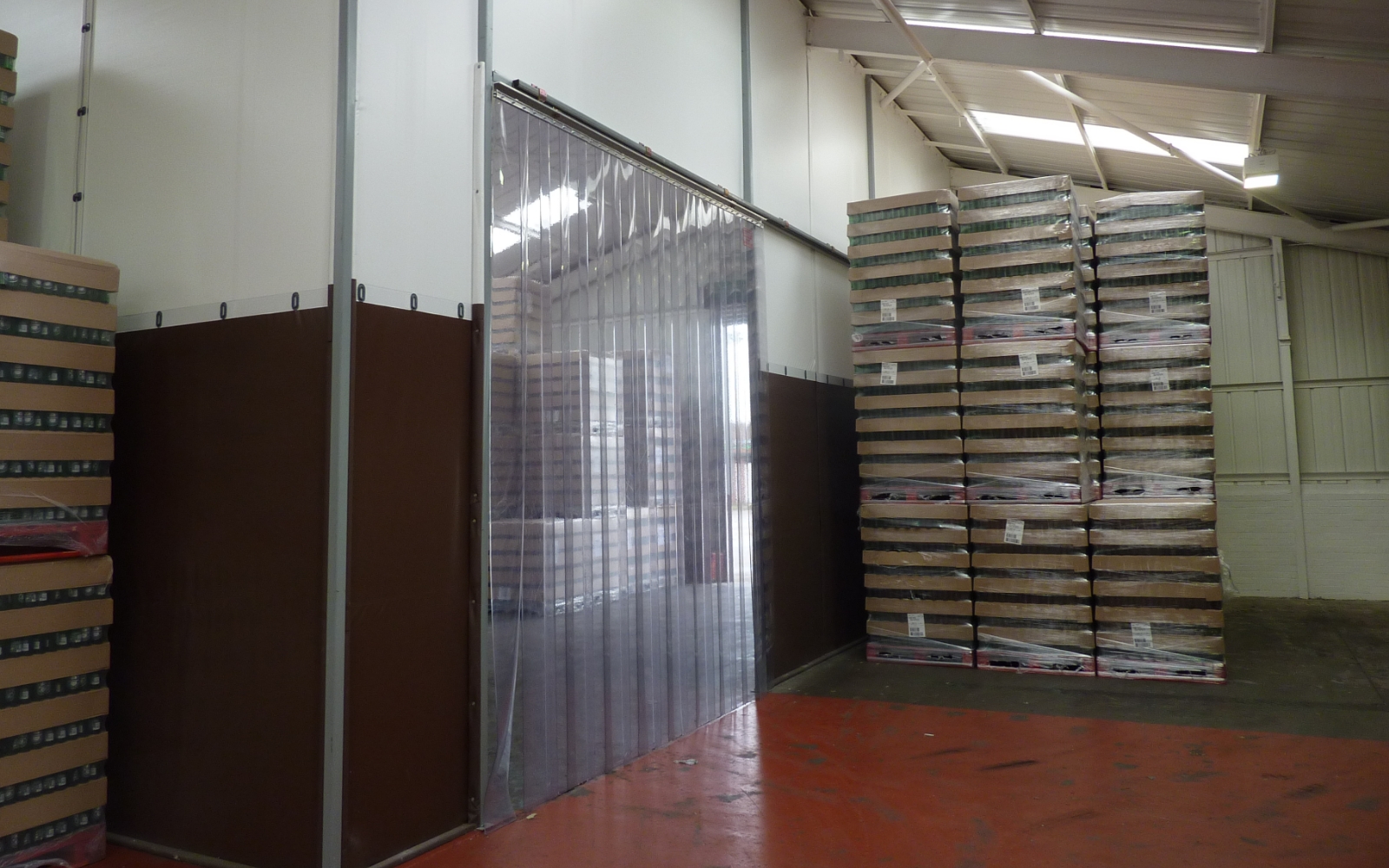

Flexistrip® – PVC strip curtains
Fixed or retractable, quick unrestricted access points for dust and temperature controlled areas.

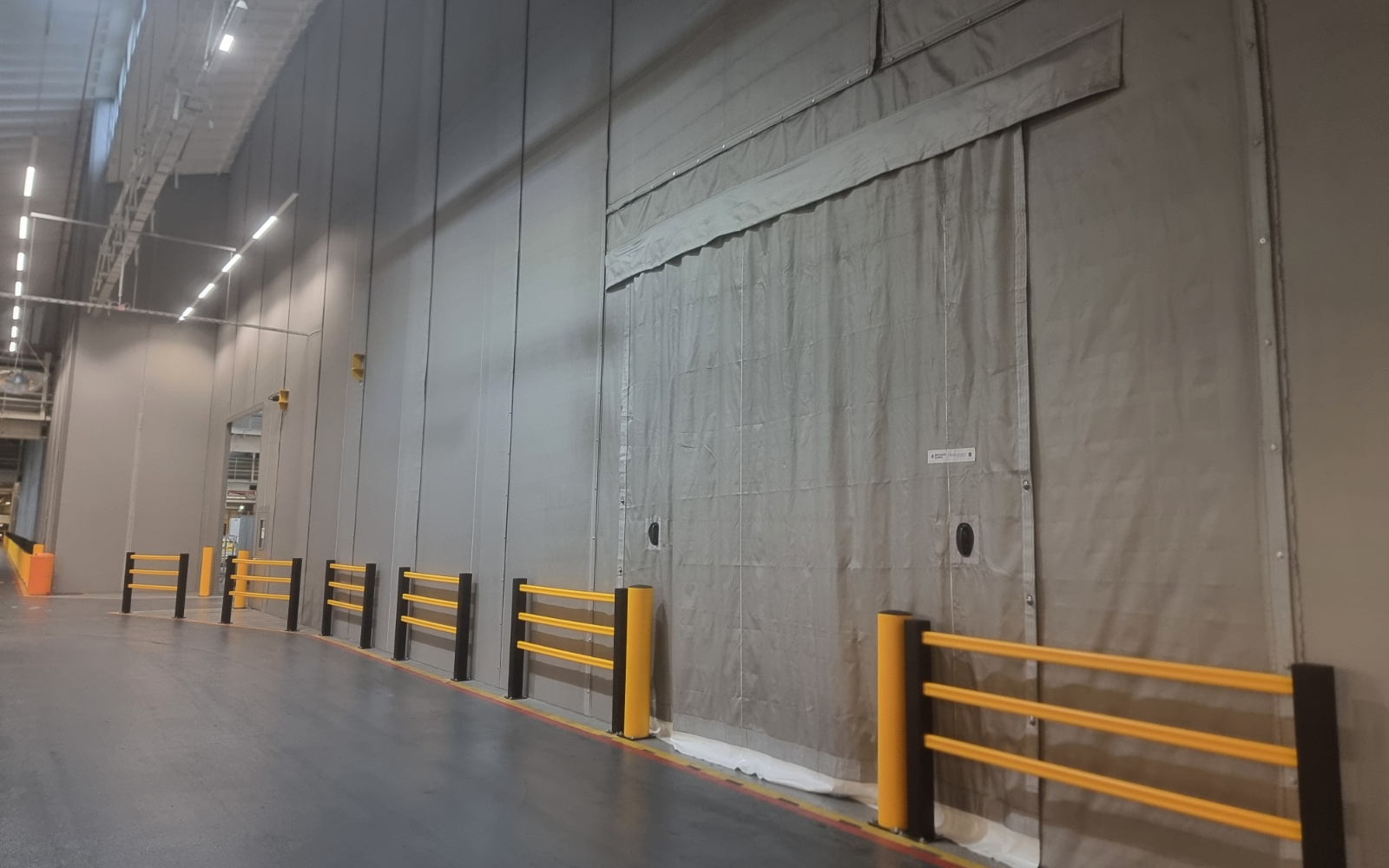

Flexicurtain® – PVC coated curtains
Easy to deploy and retract access for machinery or equipment with dependable long-term durability.

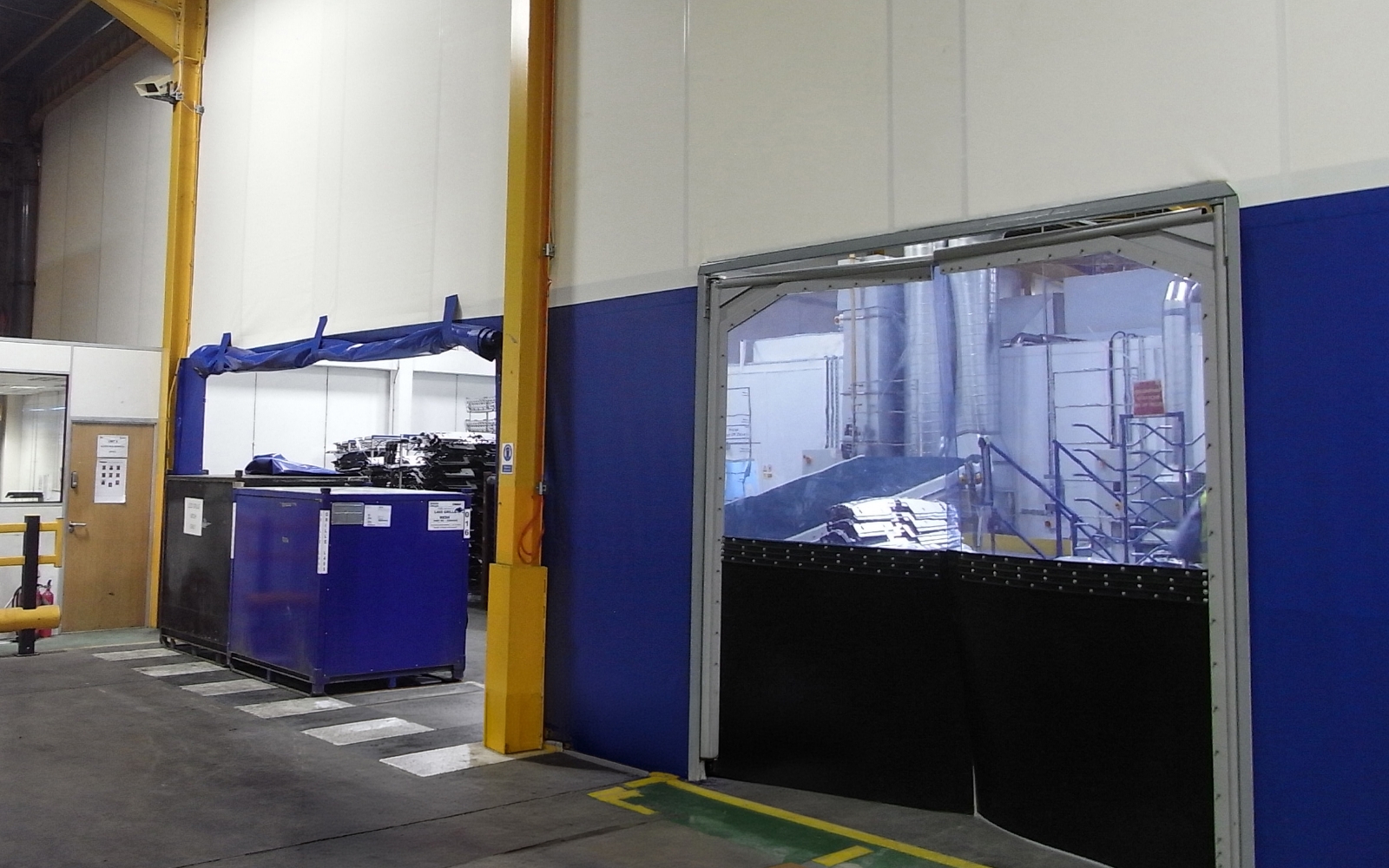

Flexidoor® – crash doors
A robust and practical two way crash swing door to create fast, free-flowing, self-closing door access between areas.

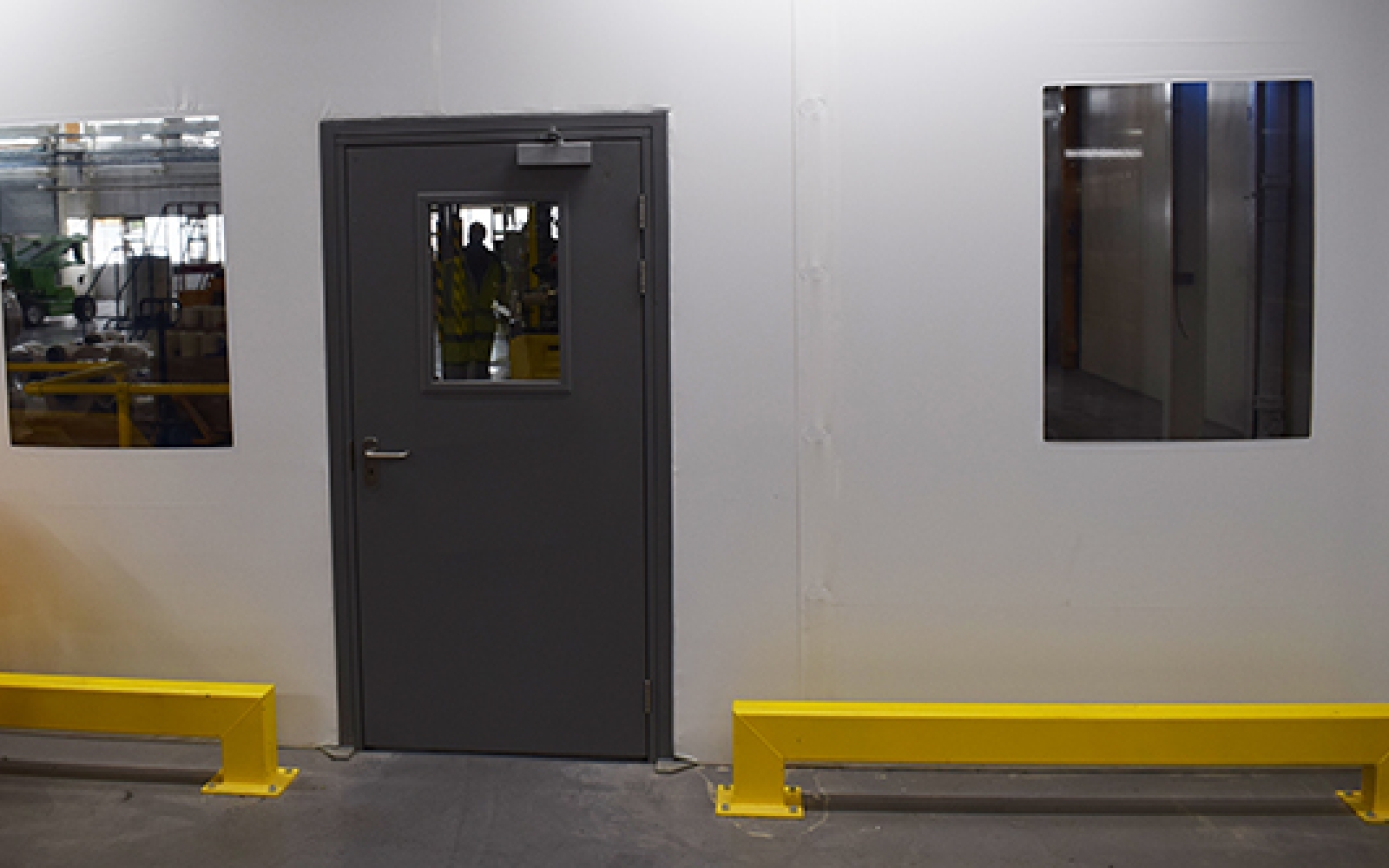

Anchorwall® – steel pedestrian doors
Secure and durable access pedestrian doors to provide additional security and create restricted access zones.

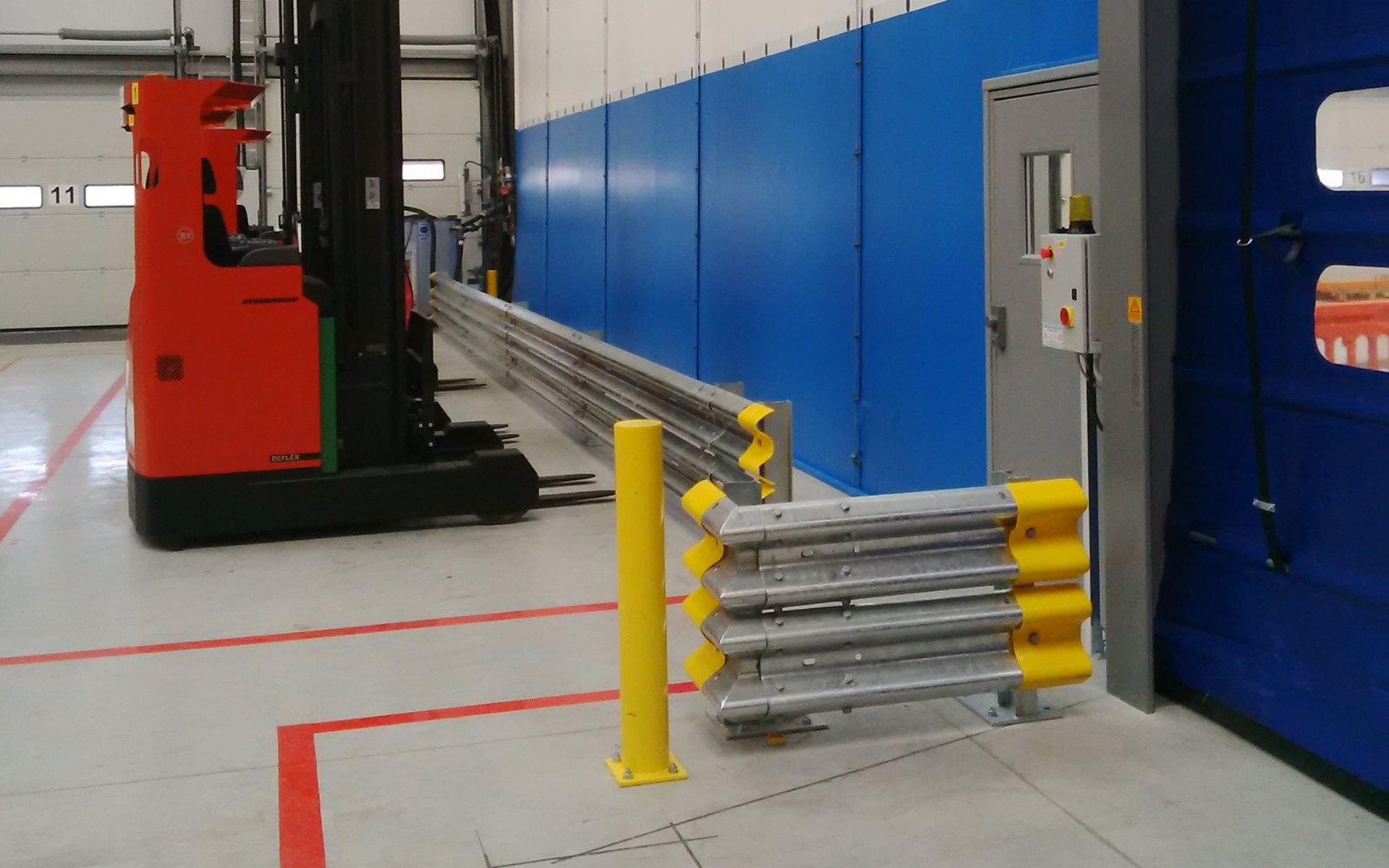

Easiguard® – crash barriers
Steel safety crash barriers, designed to protect partition walls and personnel from potential collisions and fork-lift damage.
